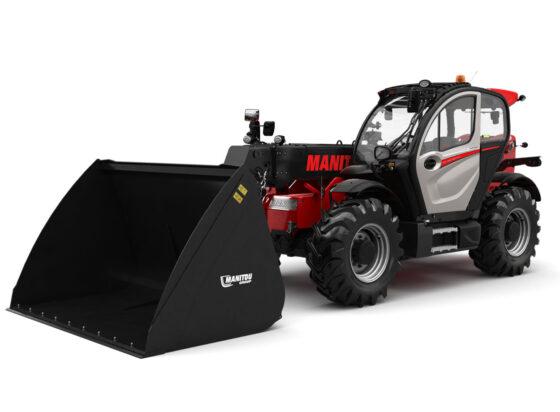

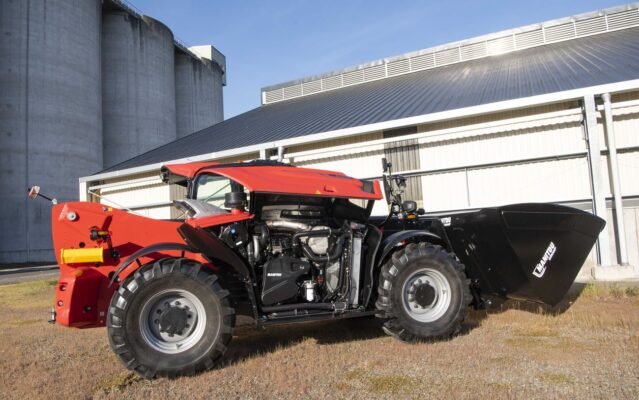

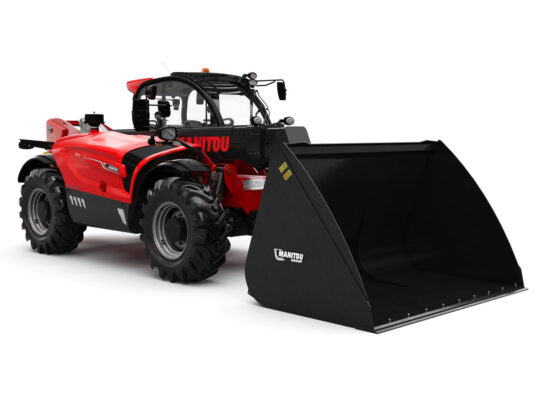

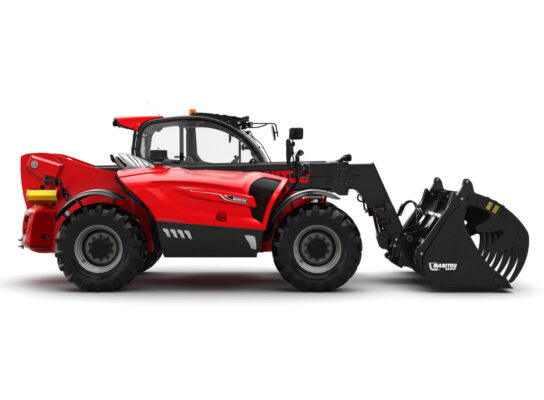

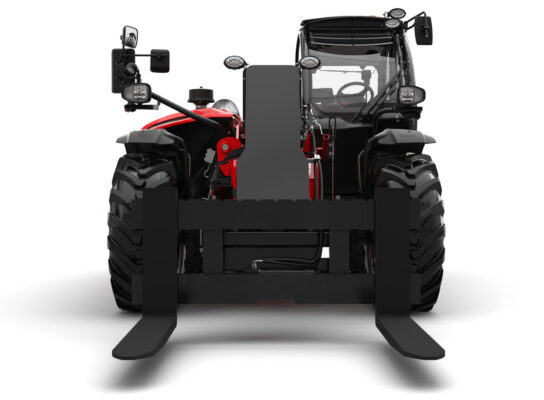

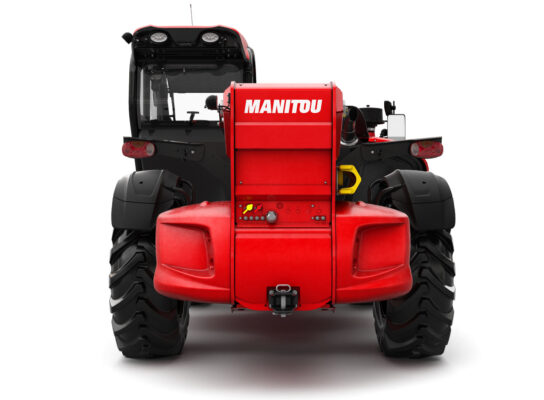

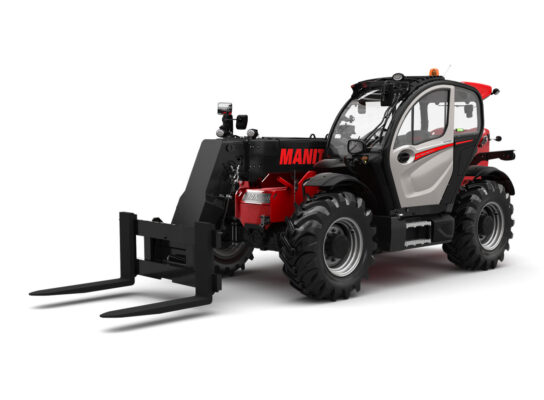

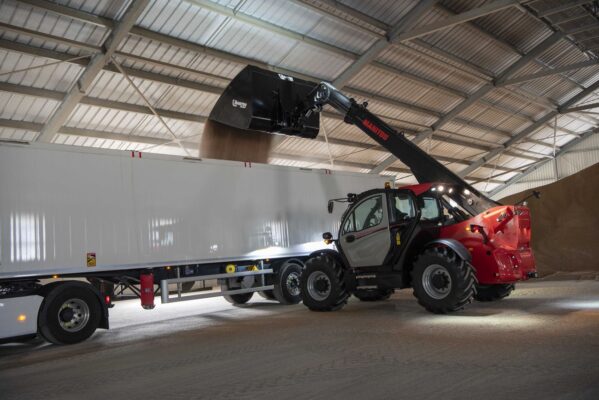

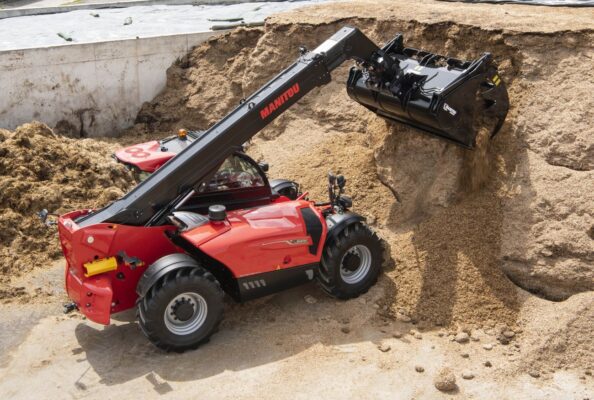

The MLT-961-160 V+ is Manitou's heaviest agricultural telehandler. The machine is equipped with a powerful Yanmar 4.5 liter engine (Stage V) which produces 156 horsepower. A very solid chassis and extra strong axles (Spicer) are aimed at heavy-duty use.

The MLT-961 replaced the MLT-960 in 2018. The difference? More comfort, higher performance and more efficiency! But the biggest progression is the chassis leveling function; this provides no less than 5000 kg lifting capacity at the maximum lifting height of 9 meters (that is more than +40% compared to the previous model).

Powerful workhorse, easy to use

Even more than its predecessor, the MLT960, the Manitou MLT961-160 is designed in its entirety for heavy duty use. This is reflected in many parts such as the chassis, the reinforced axles, reinforced brakes, a hydraulic pump with a flow rate of up to 200 liters per minute, and so on.

The biggest difference, however, is a brand new feature: Chassis leveling. With this function Manitou has made it possible to enormously increase the residual capacity, the lifting capacity at the maximum lifting height of 9 meters, to as much as 5,000 kilos.

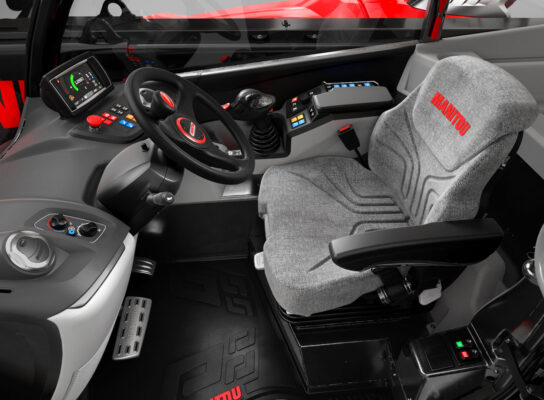

The easy-to-use M-Vario Plus transmission allows very smooth and precise manoeuvring.

Video: Manitou NewAg introduction

Brand	Manitou
Max. Capacity	6000 kg
Lifting Height	9000 mm
Model	MLT 961-160 V+ L
Drive	Diesel
Driveline	4x4
Transmission	M-Varioshift
Load center	500 mm
Truck weight	11.950 kg
Number of wheels, front / rear (x=driven)	2x / 2x
Width	2.48 m
Turning circle radius	4.30 m
Travel speed, with / without load	40 km/h
Engine, brand	Yanmar
Engine, type	4TN107FTT-5SMUF
Engine, output	115 kW
