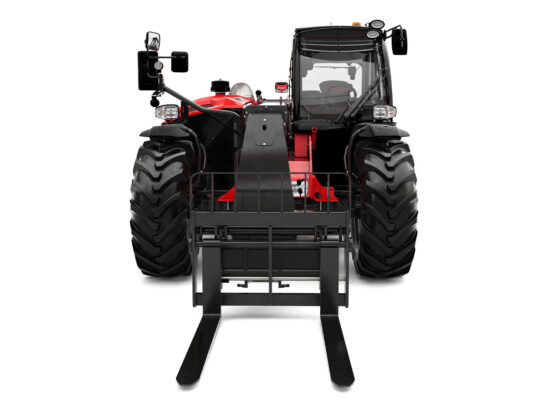

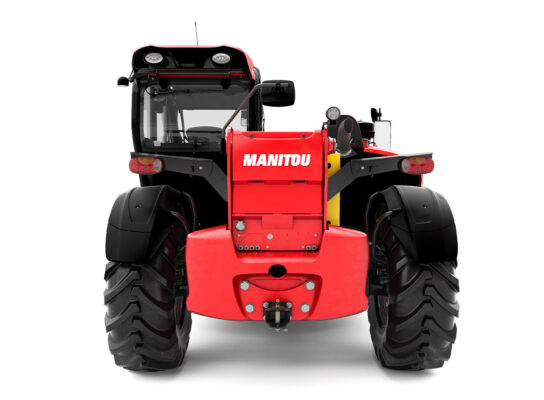

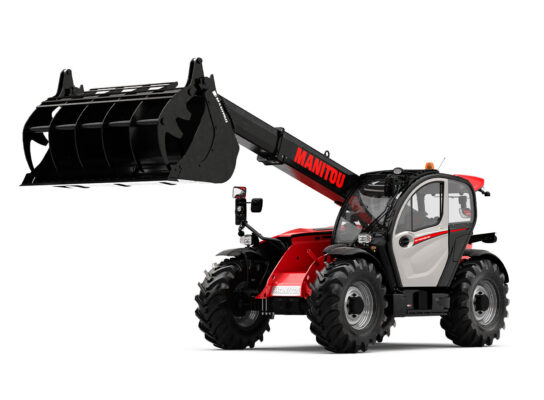

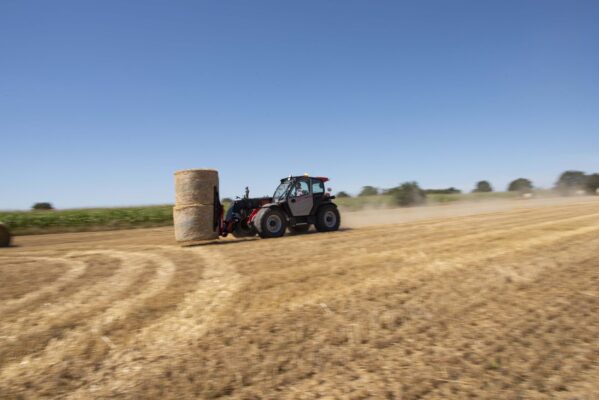

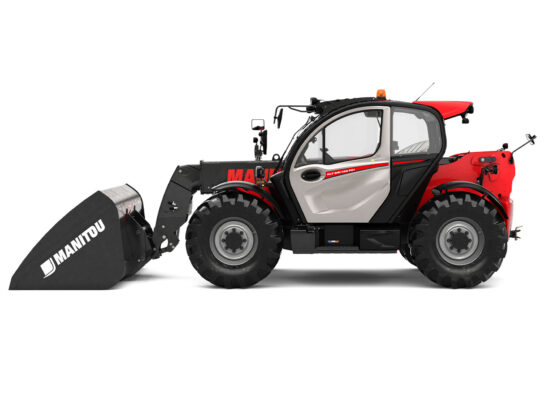

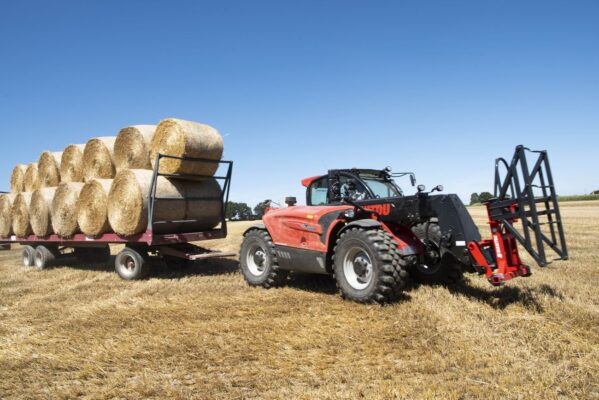

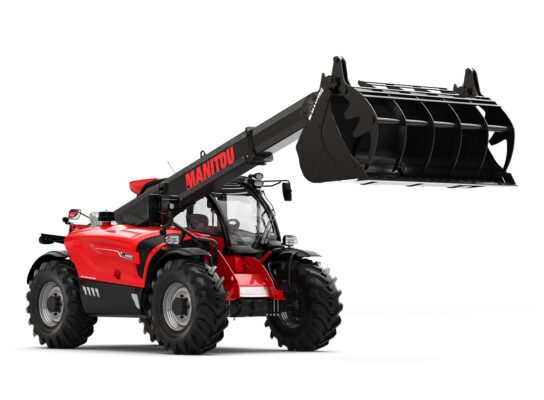

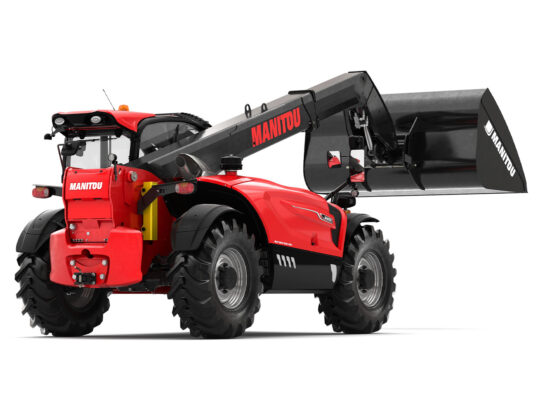

Manitou MLT-841-145 telehandler - Feyter Feyter Forklift Services

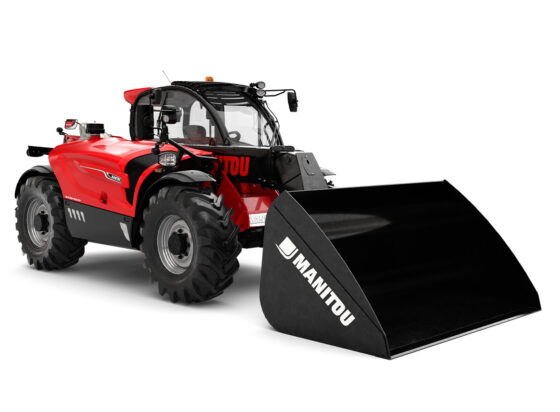

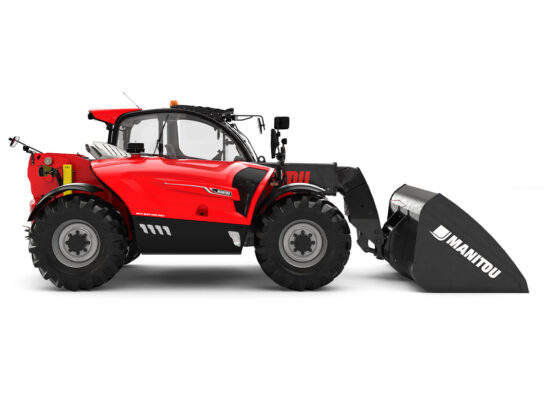

The Manitou MLT841-145 PS+ offers a lifting capacity of 4.1 tons, combined with a lifting height of 9.65 meters. The LSU 'Load Sensing' hydraulic pump delivers a flow rate dependent on the load, up to a maximum of 200 l/min.

In addition to the agriculture-oriented NewAg telehandlers, Manitou introduced the NewAg-XL series at the end of 2020. This includes this MLT841. A Yanmar Stage V engine gives the telehandler a power of 141 hp and 602 Newton meters of torque at 1,500 rpm. Yanmar is able to combine this high performance with a reduction in fuel consumption of up to 11% compared to the previous models. The M-Shift transmission, which amounts to a torque converter with automatic Powershift gearbox, combines the power of a mechanical gearbox with the comfort of a hydrostat. Driving slowly and moving the telescopic arm and bucket quickly at the same time is no problem.

Video: Manitou NewAg introduction

Brand	Manitou
Max. Capacity	4100 kg
Lifting Height	7600 mm
Model	MLT841-145 PS+
Drive	Diesel
Driveline	Powershift
Transmission	Torque convertor
Load center	500 mm
Truck weight	9160 kg
Number of wheels, front / rear (x=driven)	2x / 2x
Width	2.39 m
Turning circle radius	3.74 m
Travel speed, with / without load	40 km/h
Engine, brand	Yanmar
Engine, type	4TN107FHT-6SMU1
Engine, output	105 kW
